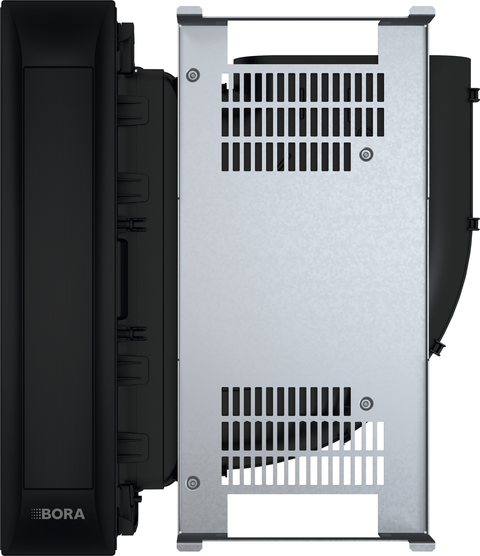

PKA3AB
The arrangement of the cooktops can be individually adapted to your needs. The illustration is for illustrative purposes only.
| Latitude | 482 mm |
| Height | 176 mm |
| Depth | 540 mm |
| Weight (incl. accessories/packaging) | 10.35 kg |
| Weight (net) | 9.04 kg |
| Surface material | Stainless steel 1.4016-II Black |
| Colour | Schwarz |
| Supply voltage | 220 – 240 V |
| Frequency | 50-60 |
| Maximum power consumption | 550 W |
| Power supply cable length | 2 m |
| Length of control cable | 3 |
| Maximum flow volume | 613 m3/h |
| Duct connection | Ecotube |
| Cooktop extractor power levels | 9 |
| Operating mode | Exhaust air/recirculation |
| Length of connection cable | 0 m |
